FRP / Gel Coat Part# RTM-INJECTION

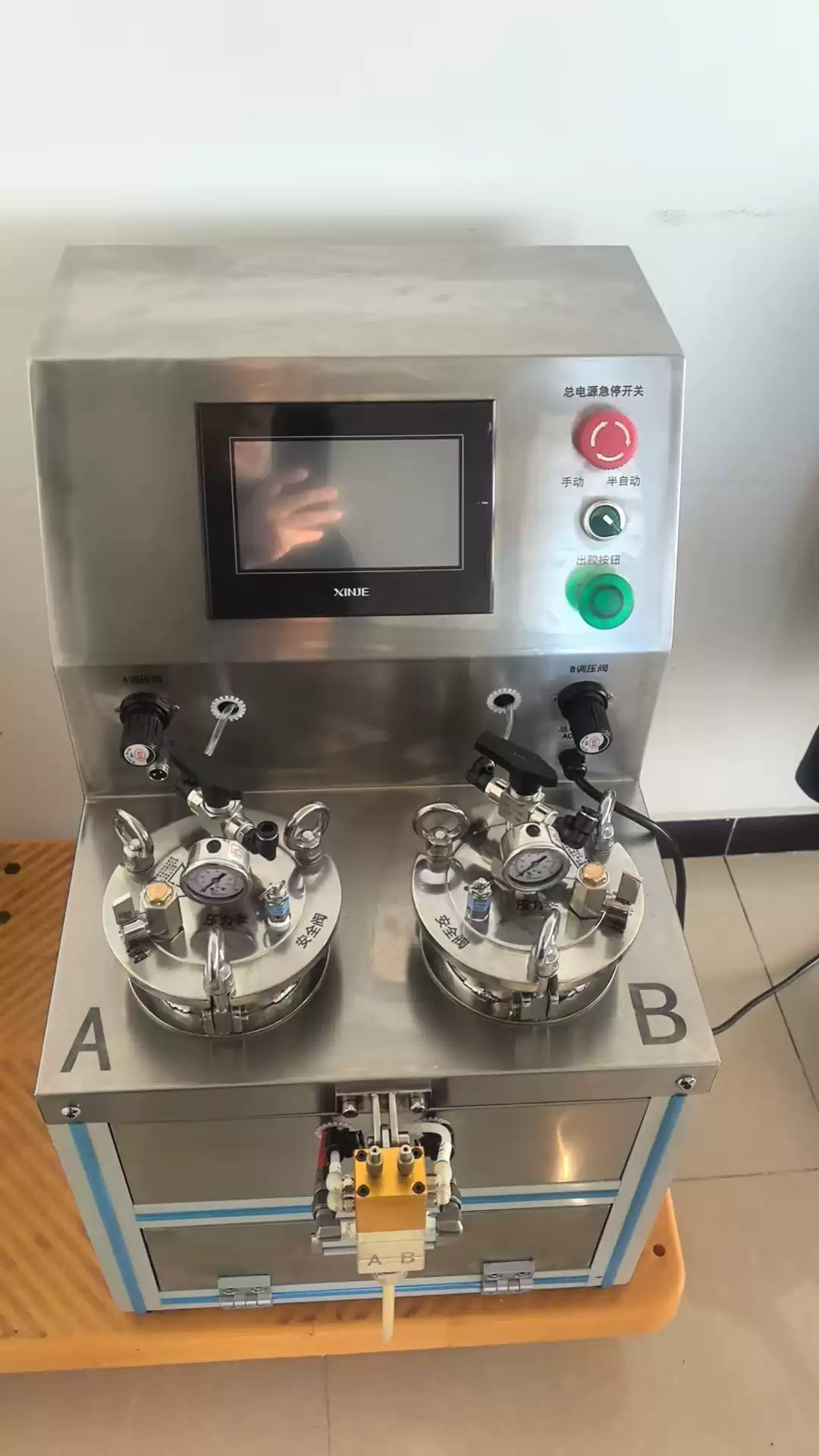

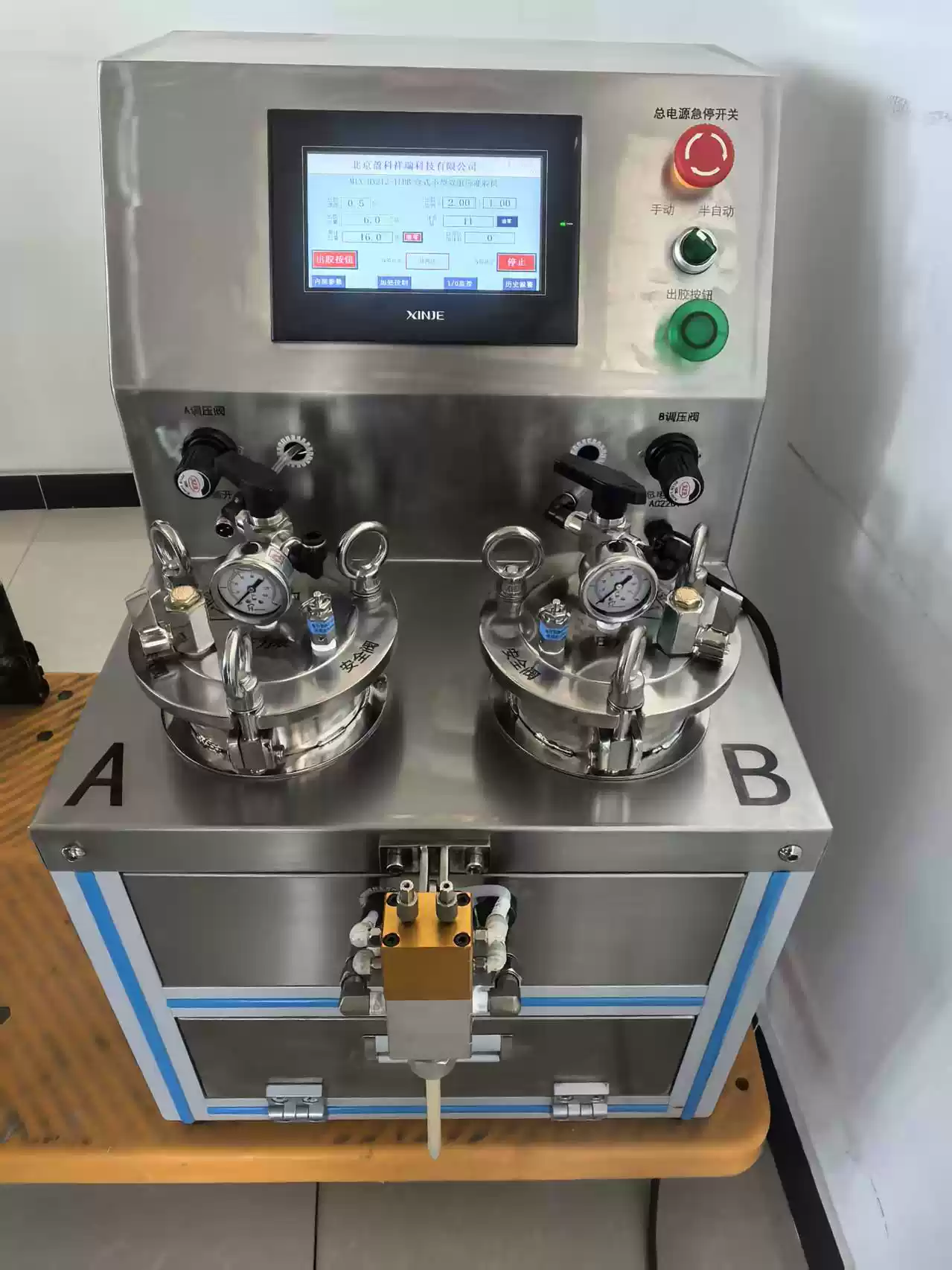

RTM Epoxy Resin Injection Equipment
Professional RTM (Resin Transfer Molding) epoxy resin injection equipment with precision ratio control from 1:1 to 5:1. Features variable speed uniform flow, 0–60°C heating capability, and vacuum pre-mixing. Storage tanks available in 3L or 5L configurations. Can be customized to meet specific production requirements. Ideal for composite manufacturing, aerospace parts, automotive components, and precision FRP production.
$24,658 USD
FOB China · Volume discounts available · Ships within 5 business days
Technical Specifications
Part Number RTM-INJECTION (Custom)
Mix Ratio Range 1:1 – 5:1
Flow Control Variable speed, uniform flow
Heating Range 0–60°C
Max Flow Rate 800 g/min
Tank Capacity 3L or 5L
Vacuum Pre-mix Yes (with negative pressure pre-mixing)
Customization Available per customer requirements
Key Features
- Precision ratio control from 1:1 to 5:1
- Variable speed with uniform flow output
- Built-in heating system 0–60°C
- Vacuum pre-mixing for bubble-free injection
- Compact design with touchscreen control panel
- Dual tank system (A/B components clearly marked)
- Customizable to specific production requirements
Applications
- RTM (Resin Transfer Molding) composite manufacturing
- Aerospace composite part production — precision resin injection
- Automotive composite component manufacturing
- Epoxy resin injection for precision FRP molds
- Carbon fiber and fiberglass part production
- Custom composite manufacturing with variable mix ratios
