Resin Transfer Molding Systems
Dispensing Equipment for RTM and Light RTM Applications · For FRP

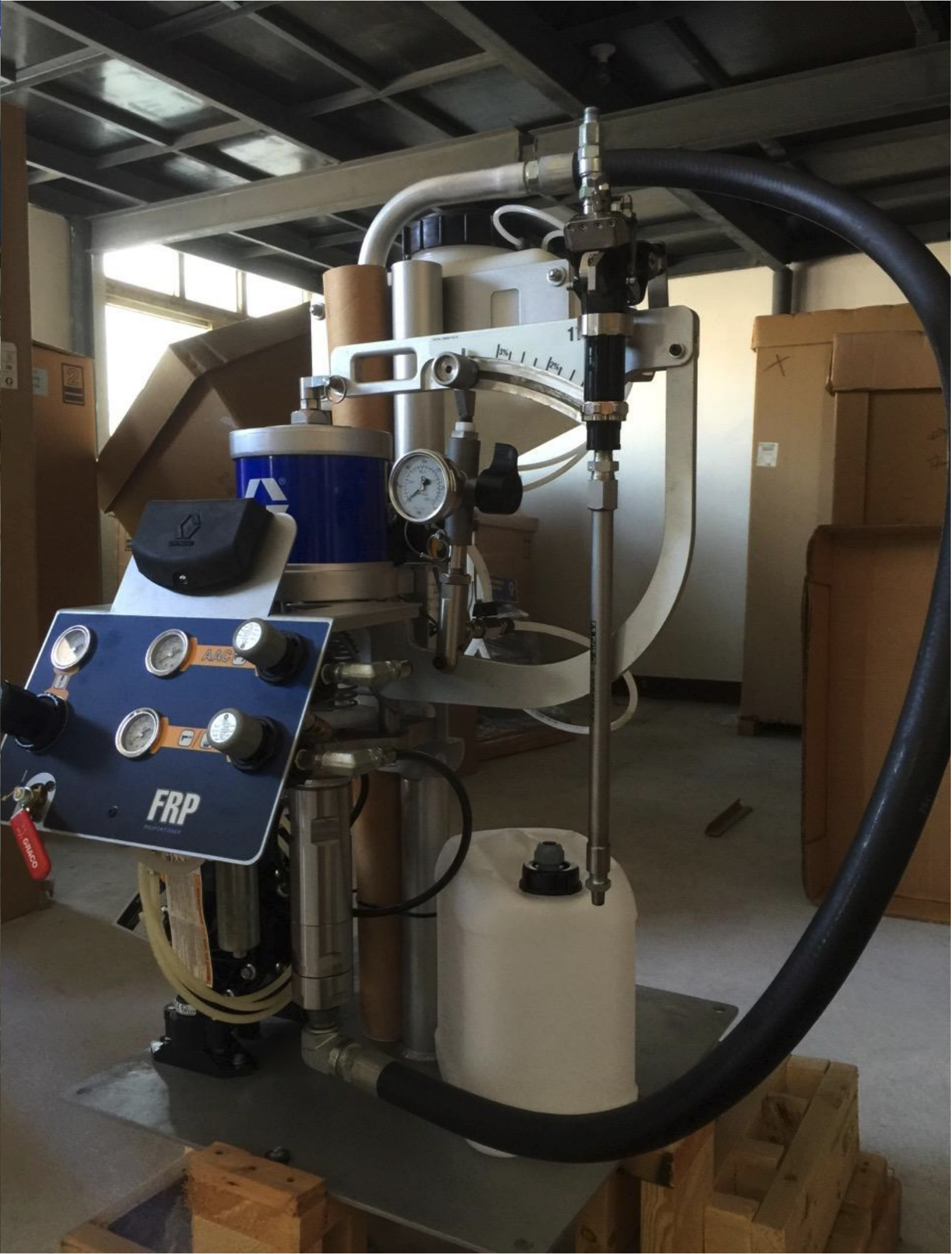

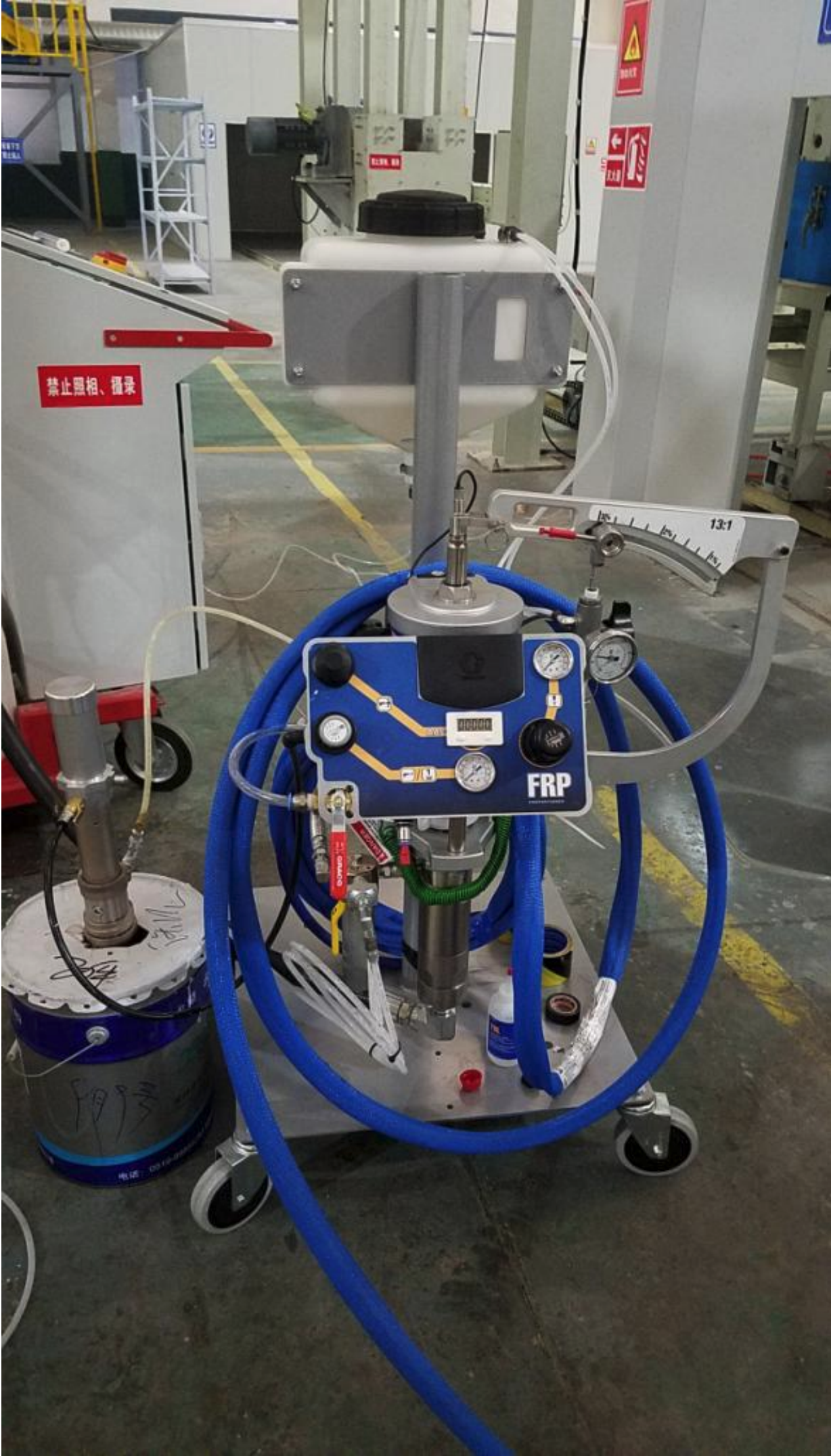

The RS Series Resin Transfer Molding System is a powerful FRP production platform built from genuine Graco components. Designed for closed-mold manufacturing including RTM, Light RTM, Vacuum Infusion Process (VIP), and Closed Cavity Bag Molding (CCBM). Introduces polyester or vinyl ester resins into closed molds containing fiberglass, carbon, or other reinforcements. Features an internal-mix RTM injection head for clean, uniform mixing, a pneumatic material pump with selectable 13:1 or 17:1 ratio, an all-stainless catalyst pump with stepless 1%–3% adjustment, direct drum feed system, and a mobile cart for easy repositioning on the production floor.
FOB China · Volume discounts available · Ships within 5 business days
Technical Specifications
Key Features
- Built with genuine Graco original components — proven reliability
- Internal-mix injection head — uniform mixing for clean RTM production
- Selectable 13:1 or 17:1 pump ratio — adapts to different resin viscosities
- All-stainless catalyst pump with stepless 1%–3% adjustment
- New catalyst detection valve ensures good mixing even at low catalyst settings
- RS spray gun with bipolar mixing system — easy to clean, simple to operate
- Direct drum feed system — clean material transfer, minimal waste
- Three cleaning system options: pressure tank, AODD pump, or high-pressure plunger pump
- Fully pneumatic — safe for use in hazardous environments, no electricity needed
- Mobile cart design — easy to reposition throughout the production floor
Applications
- Resin Transfer Molding (RTM) — polyester and vinyl ester resin into closed molds
- Light RTM — semi-rigid closed mold composite production
- Vacuum Infusion Process (VIP) — vacuum-assisted resin infusion into fiber preforms
- Closed Cavity Bag Molding (CCBM) — flexible closed-mold FRP production
- FRP gel coat spraying — single-color gel coat surface application
- Fiberglass composite manufacturing — automotive, marine, construction panels
