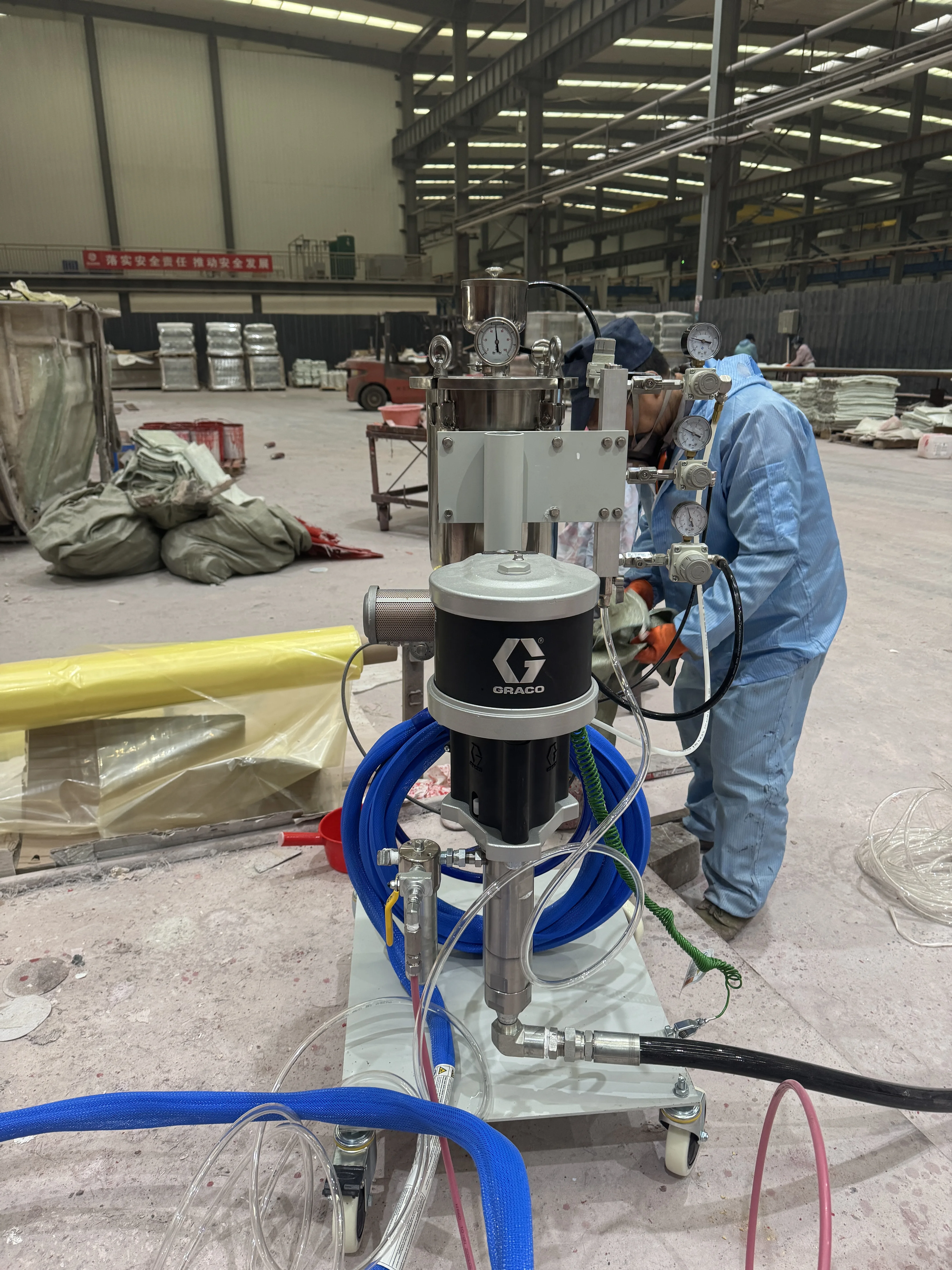

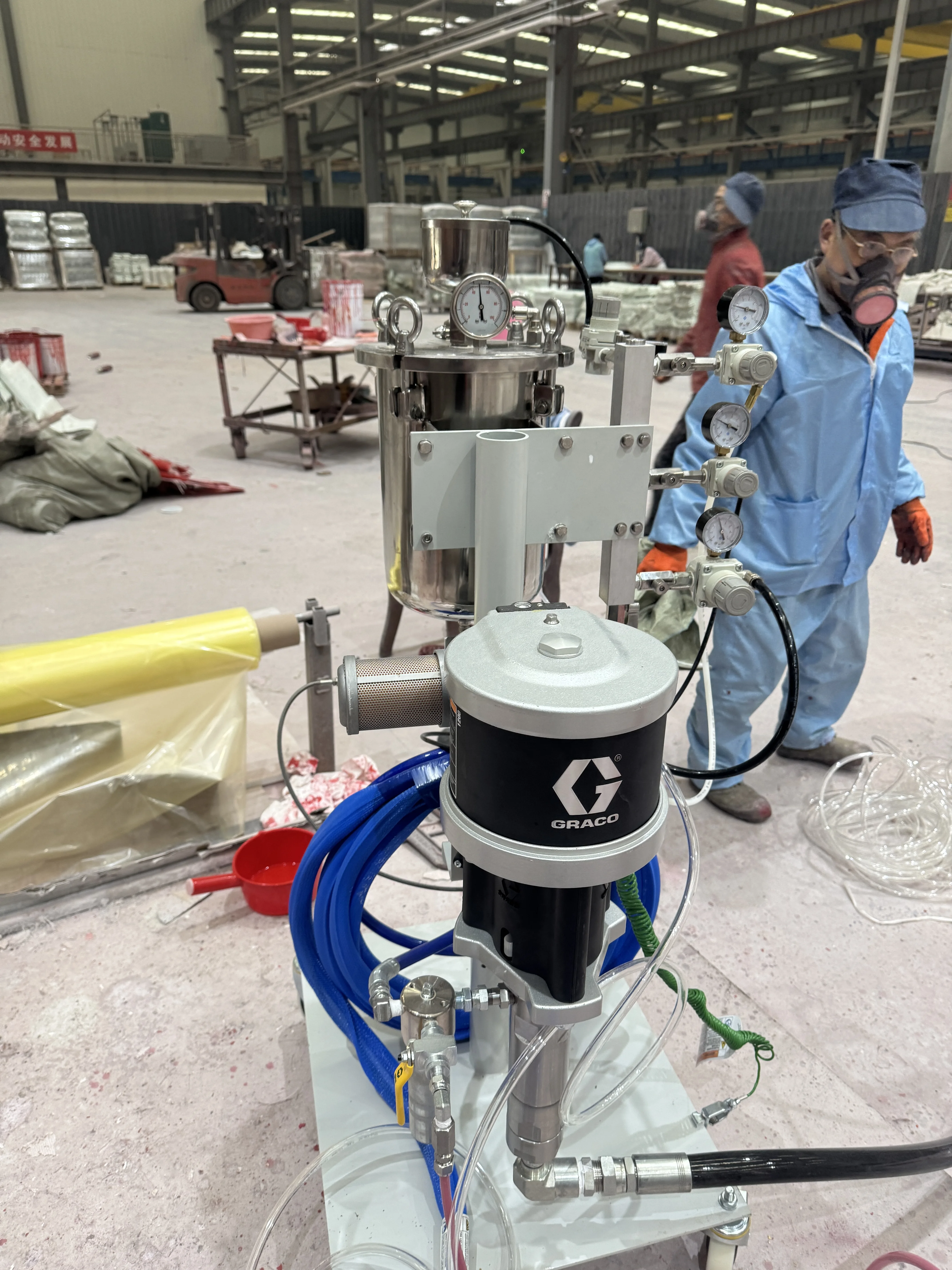

Gel Coat & Resin Spray System (Complete Workstation)
Complete gel coat and resin spray workstation built around Graco components. Includes proportioning pump, material hoses, spray gun, and mobile cart. Designed for FRP production facilities — gel coat application on yacht hulls, bathtubs, wind turbine blades, and other composite molds. Turnkey system ready for immediate production use. Key upgrade: the proportioner ratio unit has been redesigned to draw catalyst directly from a drum, delivering consistently stable hardener output and eliminating the catalyst clogging and metering failures common in traditional systems — reducing catalyst-related failure rate by 99%.
FOB China · Volume discounts available · Ships within 5 business days
Technical Specifications
Key Features
- Drum-fed catalyst system — stable hardener output, eliminates metering failures
- Catalyst failure rate reduced by 99% vs traditional proportioner design
- Complete turnkey system — ready for production
- Built around proven Graco pump and spray components
- 30:1 pump ratio with 1–3% catalyst adjustment
- Up to 1.2 gpm (4.5 L/min) output at up to 2,400 psi (165 bar)
- Standard 25 ft (7.5 m) hose, extendable up to 50 ft (15 m)
- Mobile cart design for flexible workshop positioning
- Suitable for gel coat, resin, and composite material spraying
- Used in yacht, sanitary ware, wind energy, and FRP manufacturing
- Can be customized to specific production requirements
Applications
- FRP production facility — complete gel coat spray workstation
- Yacht and boat manufacturing — hull gel coat application system
- Sanitary ware factory — bathtub and shower tray gel coat line
- Wind energy — turbine blade composite coating system
- Custom fiberglass product manufacturing — turnkey spray setup
