Proportioners Part# ESC205

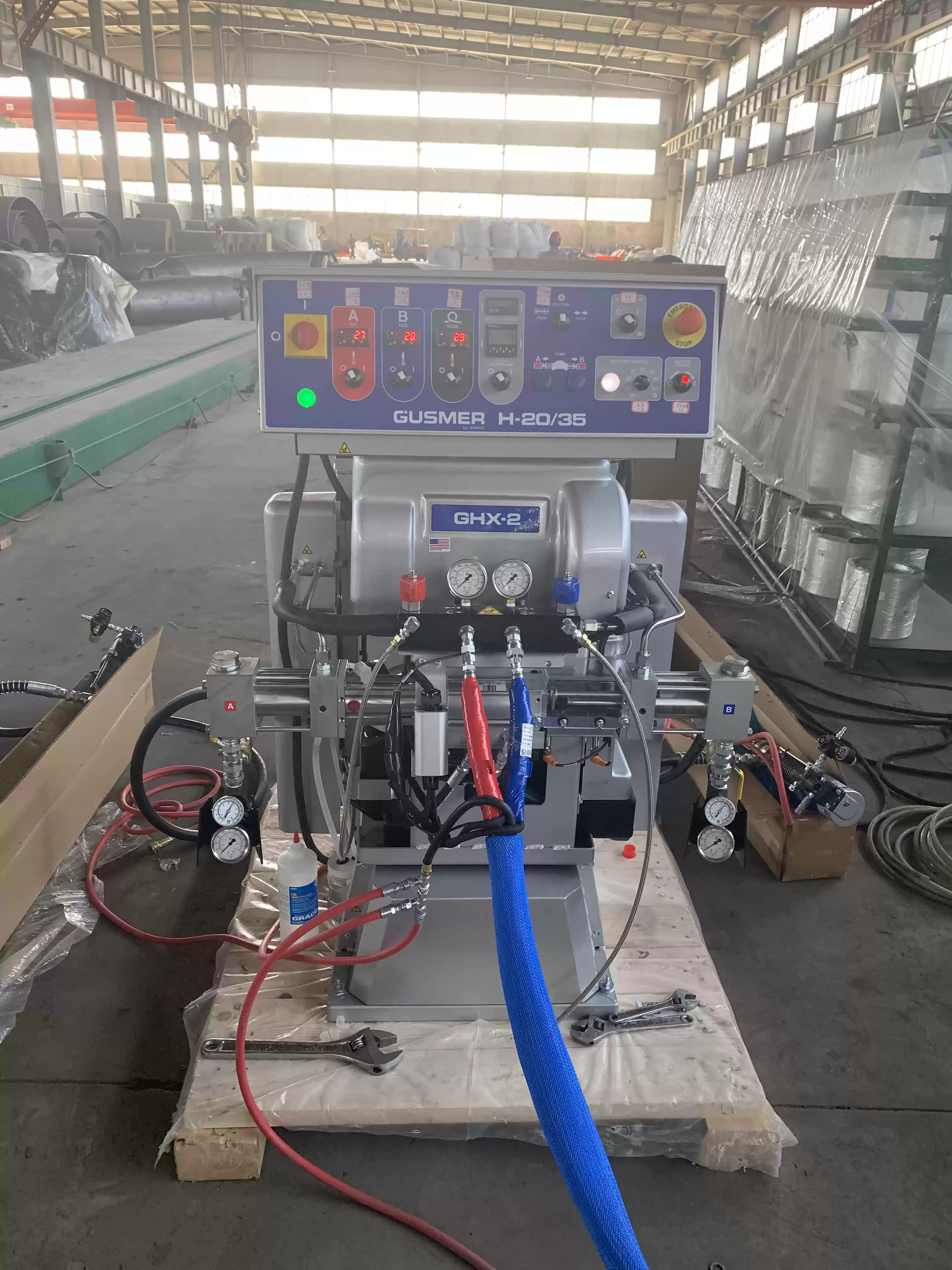

ESC205 (formerly H2035) Gusmer GHX-2 Hydraulic Proportioner
The ESC205 Gusmer H-20/35 is a hydraulic plural-component proportioner built around Gusmer's point-to-point wired electrical cabinet and Graco's industry-proven Reactor 2 hydraulic chassis. It combines horizontal pumps, fluid heaters and a hydraulic system in a simple, durable machine for residential insulation, commercial wall insulation, roof insulation, rim and band joist, concrete lifting and polyurea coating work.
$37,200USD
FOB China · Volume discounts available · Ships within 5 business days
Technical Specifications
Part Number ESC205
Type Hydraulic Proportioner
Chassis Reactor 2 Hydraulic
GHX-2 Max Pressure 3,500 psi (24.1 MPa, 241 bar)
GHX-2 Max Hose Length 310 ft (94.5 m)
Max Fluid Temp 190°F (88°C)
GHX-2 Output 1.5 GPM (5.7 LPM) at 60Hz
GHX-2 Weight 600 lbs (272 kg)
Heater 15 kW
Power 400 V, 3-phase
Dimensions 32-33"W × 21"D × 54"H
Package: Proportioner 26C205 — Gusmer GHX-2 Proportioner, 15 kW, 400 V, 3-phase (×1)
Package: Whip Hose 25P772 — 10 ft × 1/4 in Whip Hose, 3,500 psi, Xtreme-Wrap (×1)
Package: Heated Hose 246679 — 50 ft (15 m) Heated Hose, 3/8 in ID, with thermocouple and scuff guard (×1)
Key Features
- Includes proportioner, heated hose and whip hose. Spray gun and feed pumps available as options.
- Point-to-point wired electrical cabinet — simple, durable, easy to repair
- Built on proven Reactor 2 hydraulic chassis
- Ideal for residential and commercial insulation
- Roof insulation, rim/band joist, concrete lifting applications
- Standard off-the-shelf hardware — easy to source replacement parts
Applications
- Spray polyurethane foam (SPF) insulation — residential and commercial buildings
- Polyurea waterproof coating — roofs, decks, foundations
- Two-component spray equipment for insulation contractors
- Concrete lifting foam injection
- Industrial pipe and tank insulation
- Polyurethane spray machine for building insulation projects
